Сomfortable to use

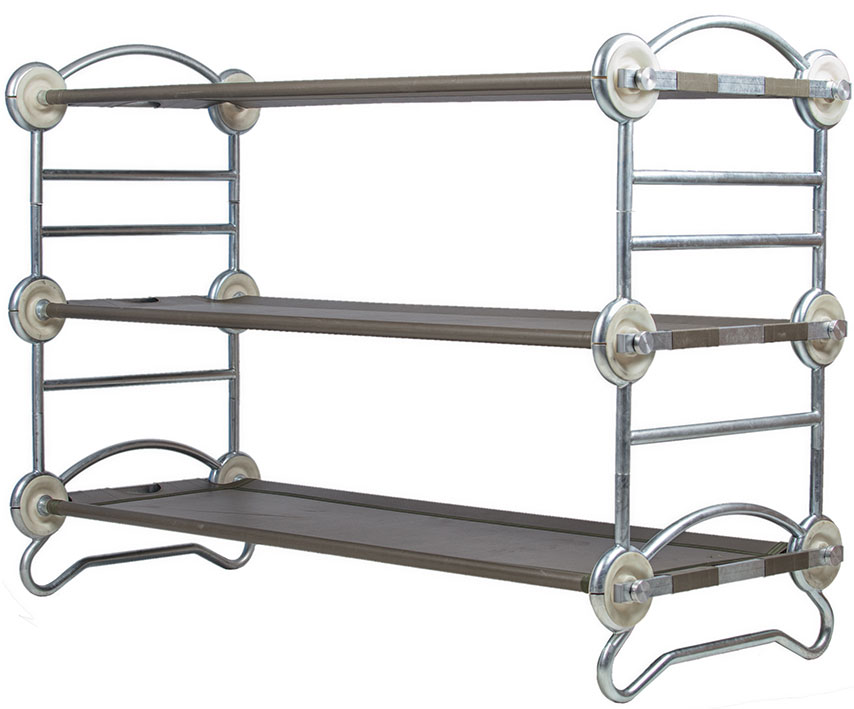

System so called - Transformer "3-in-1", can transform into stretchers - bed - sofa. You can additionally install 3rd floor on all bunk beds, it allows to place up to 3 people on 1.5 square meters. This option is unique, there are no analogs in the world.
It is possible to regulate the height between the floors due to the removable insulation (150 mm).
We have designed textile organizer to store personal belongings, it can be attached to each bunk.

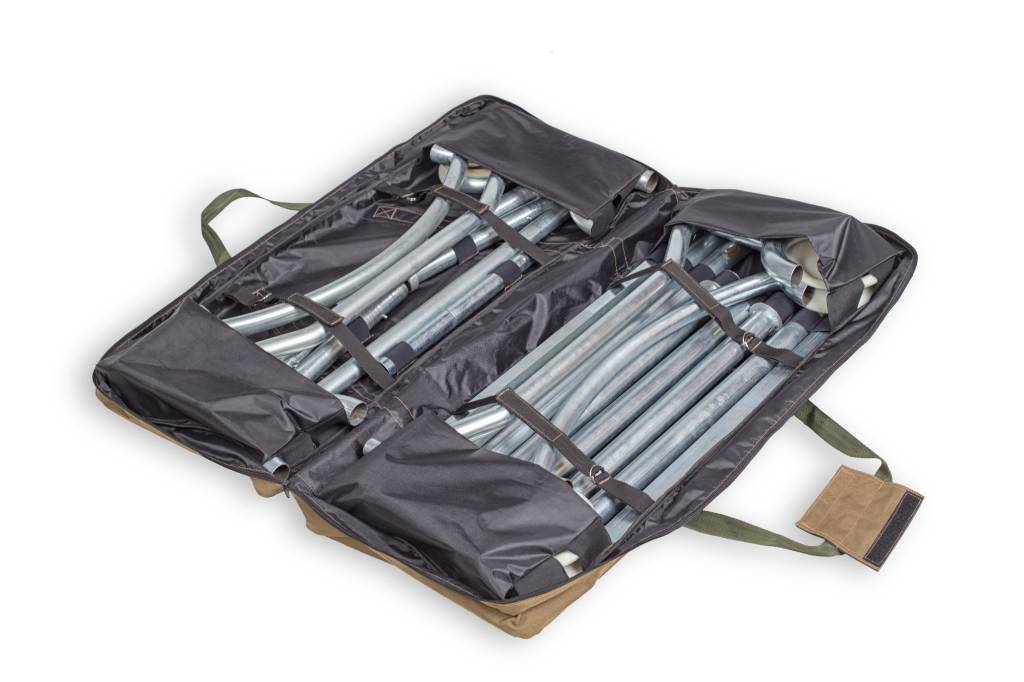

There are 2 options for easy storage and transportation of "MTB" systems: a box or a bag.

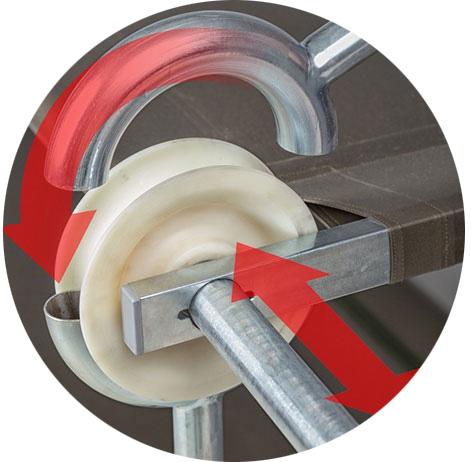

mtb imagee

Easy to mount

Beds are easy to assemble, disassemble. Installation does not require any additional tools and is available to everyone.

One person is can manually assemble the bed in 3 minutes.

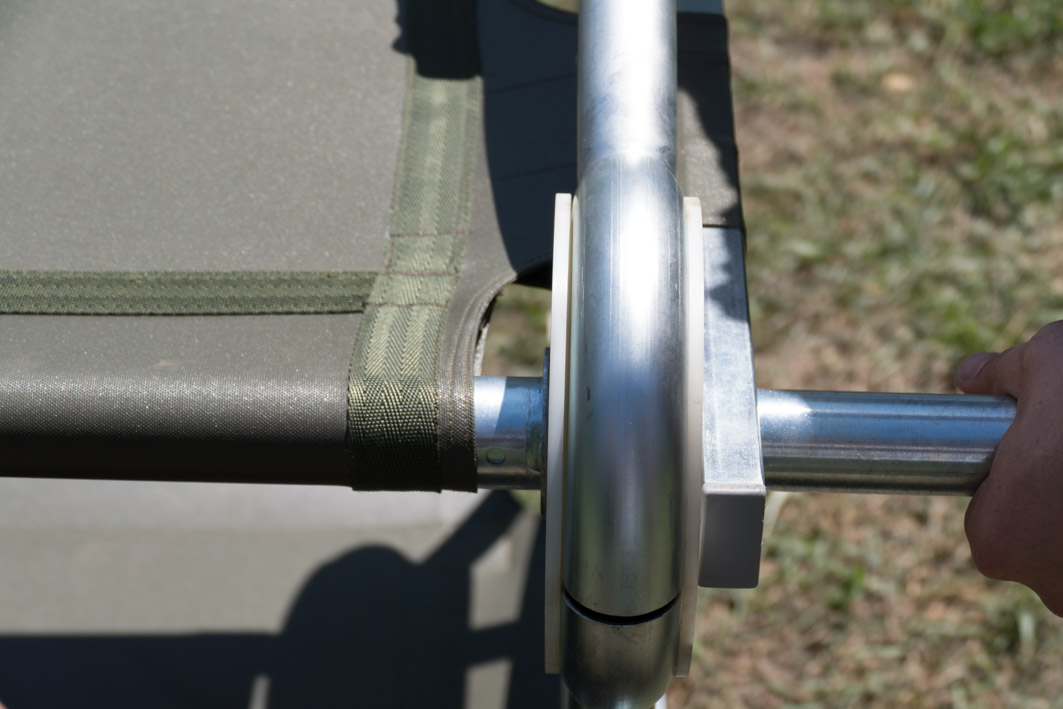

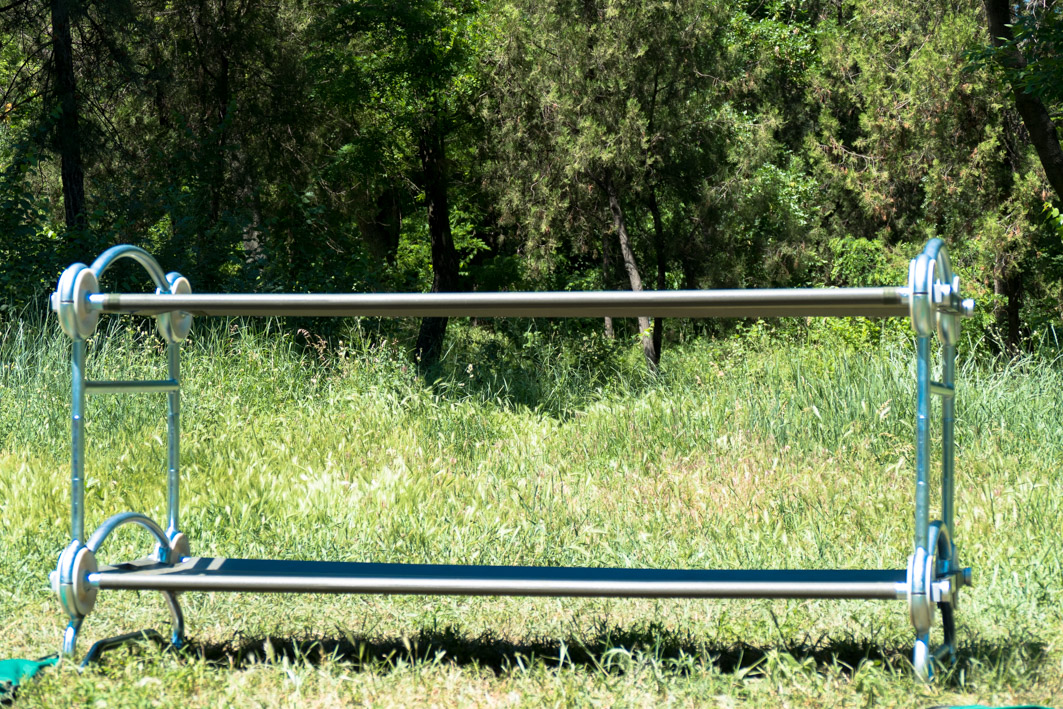

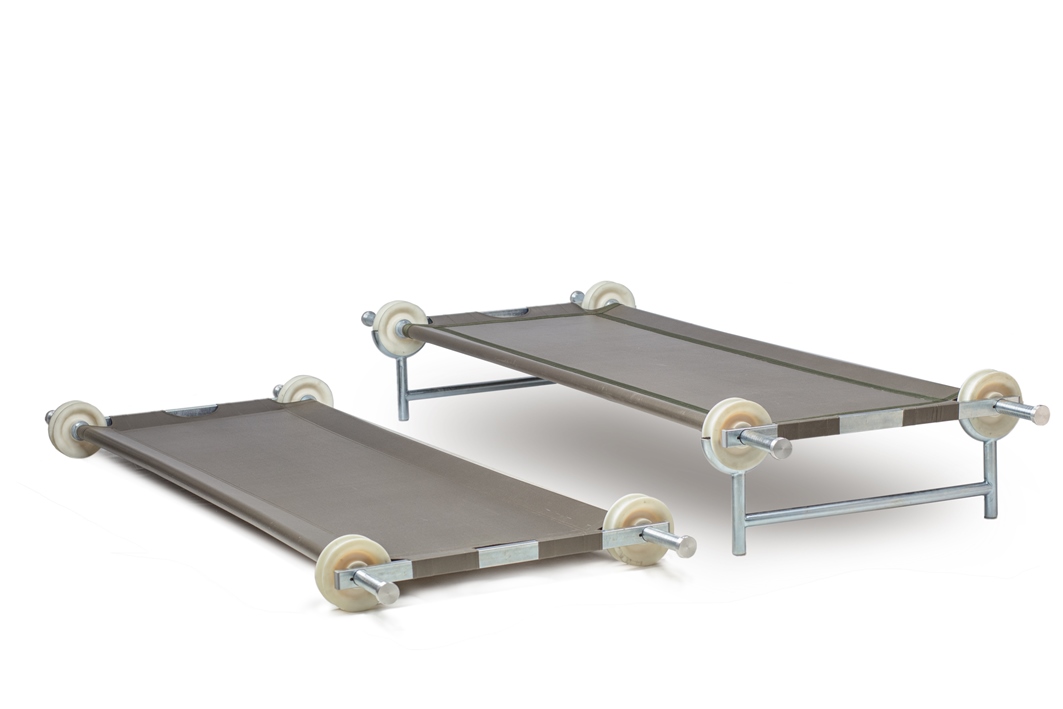

The bed easily transforms into stretchers by removing of the upper tier supports and removing of special holders for stretchers from the disc apertures (holes).

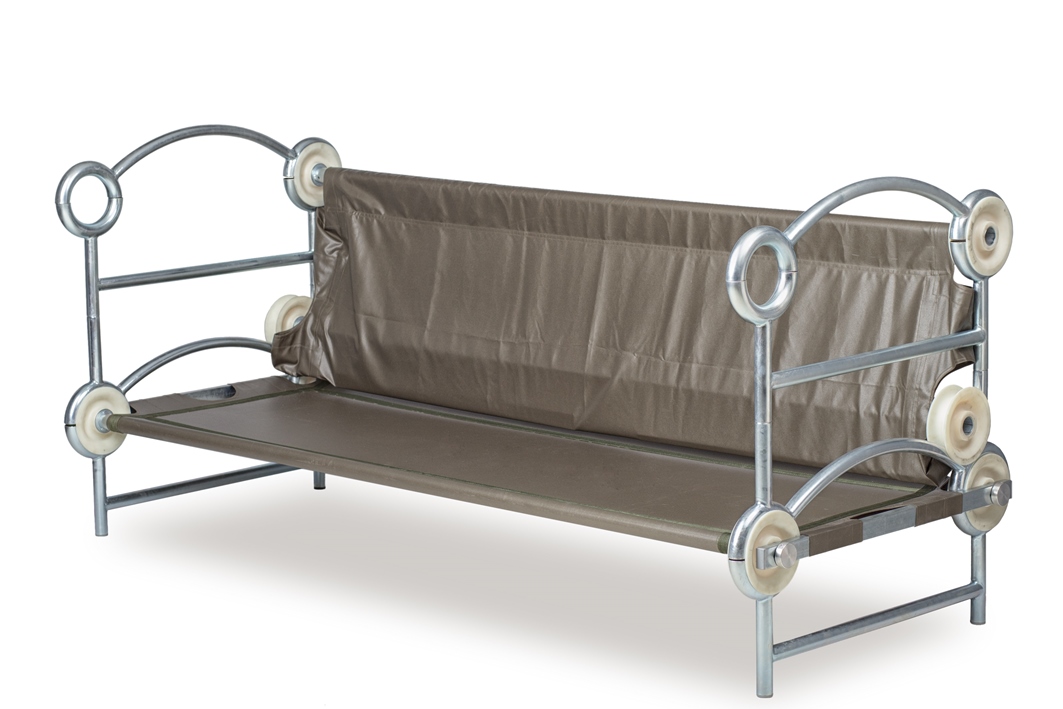

In order to turn the bed into a sofa you need to remove the support of the upper tier from one side and put the upper tier the way that it will become a support for the back.

mtb image

Reliable in operation

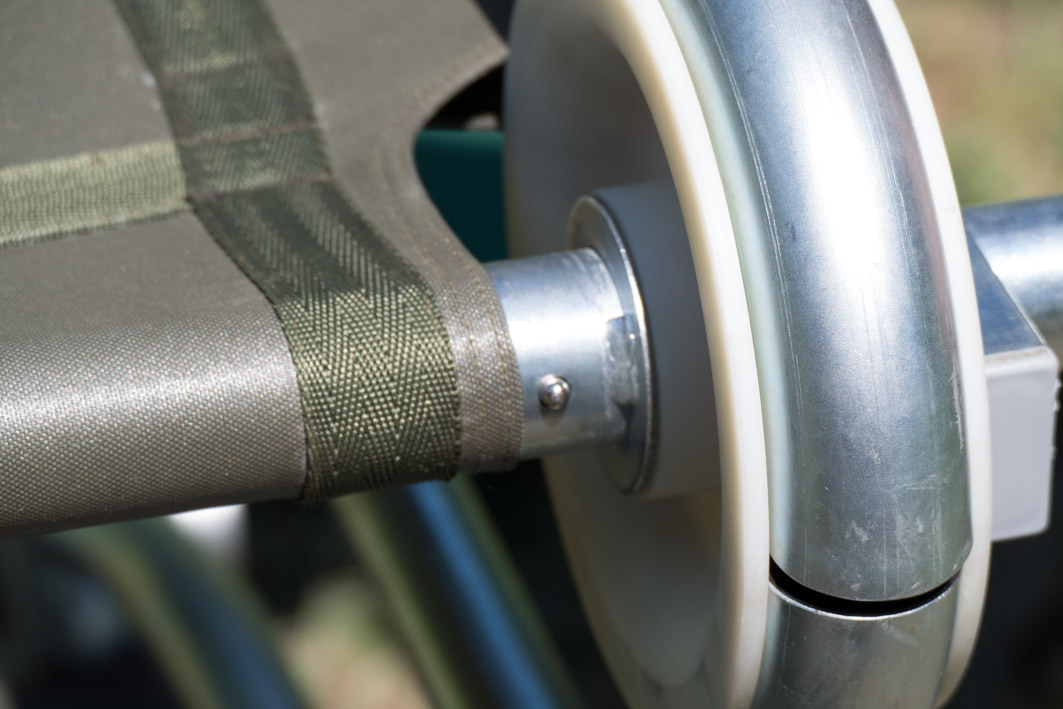

The system is reliable and compact, maximum weight is up to 450 kg. Due to the textile dense tension around the perimeter of the frame, it becomes harder and stronger. All metal parts are corrosion resistant.

High-strength synthetic textile has a density of 1000 den, has a high abrasion resistance and resistant to environmental influences.

All beds are adjustable, what allows you to replace any part quickly and easily in case of loss or damage.

All “MTB” beds have 3 years of warranty.








МТВ ARMY

The main tasks of the army beds:


  Placing people in the field

  The compact arrangement of beds per unit area

  The operational assembly and disassembly, ease of design and ease of transport















Multifunctionality use:

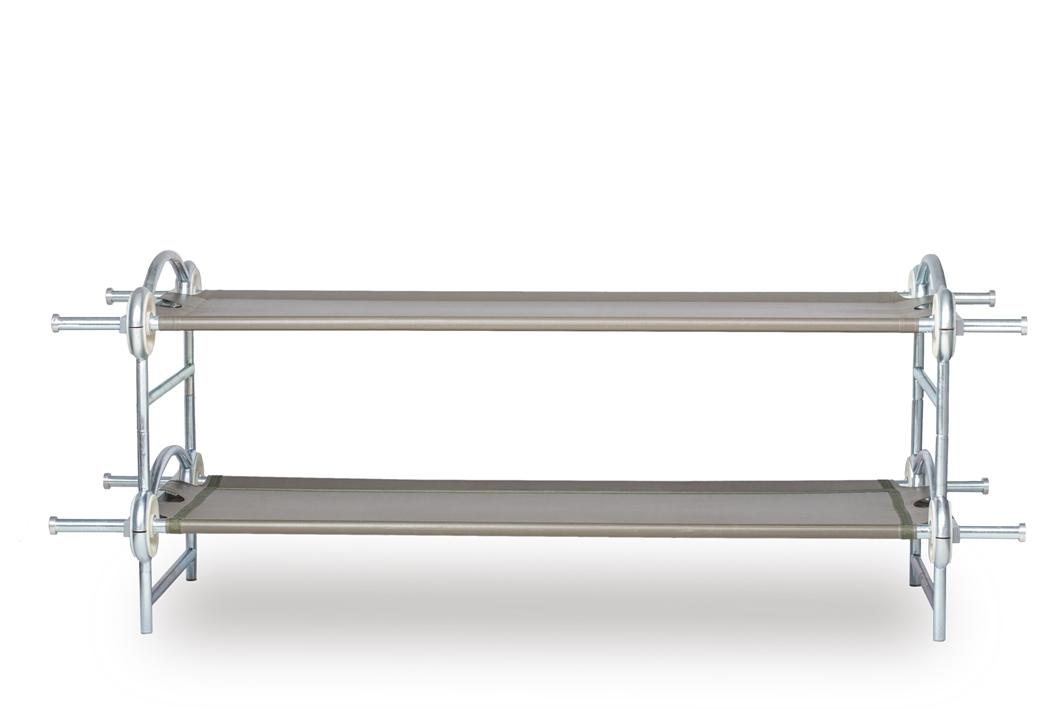

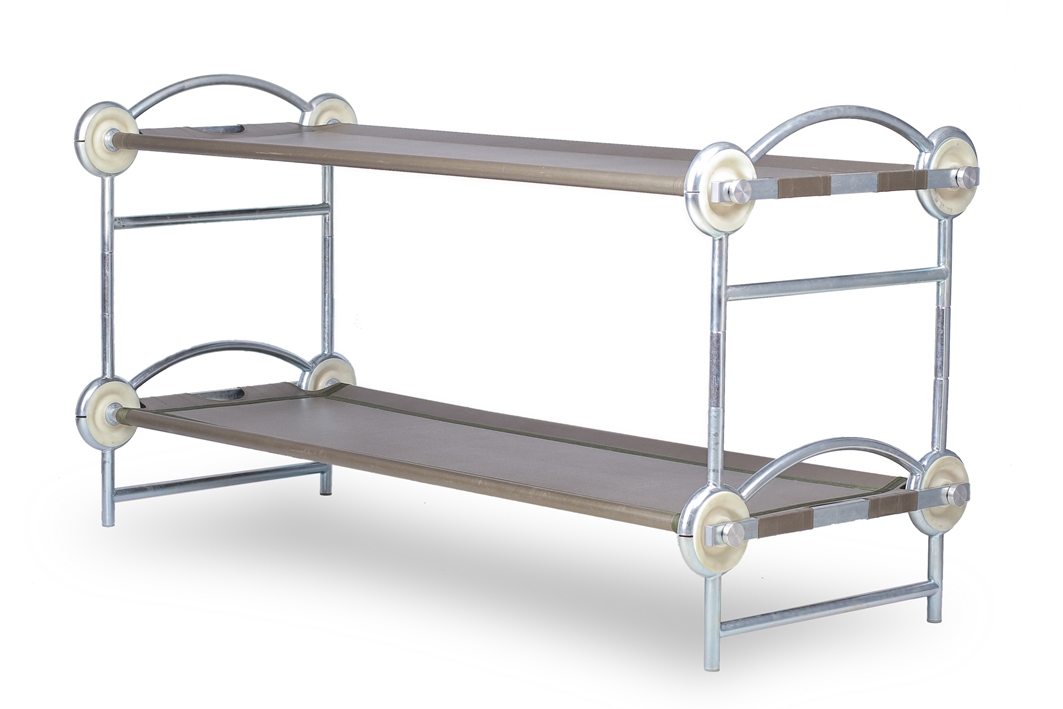

  Berths in two levels

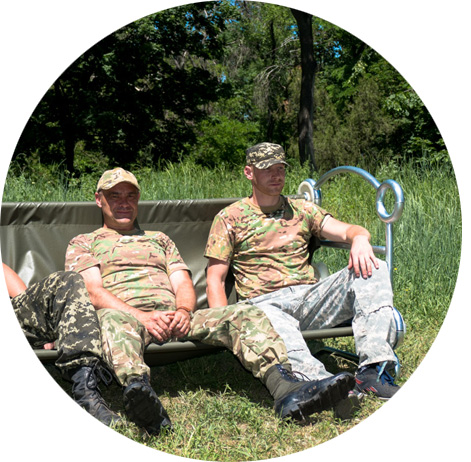

  Sofa two seats with backrest

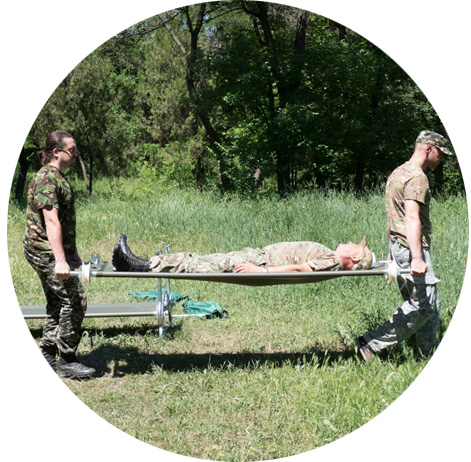

  Stretcher with 2 wheels






Technical specifications
descriptionModel МТВ ARMY
framezinced steel
clothPolyester - tensile strength, abrasion resistance, mold; easy to clean, fast drying, 600 den
permissible load on one bed, kg 300
Dimensions in the assembled state L x W x H, cm 213 х 89,5 х 95,3 (L x W x H )
sleeping area L x W, см 200 х 70
height of the lower bunk, cm28
the height of the upper bunk, cm81
weight set, kg 35
weight, kg 36

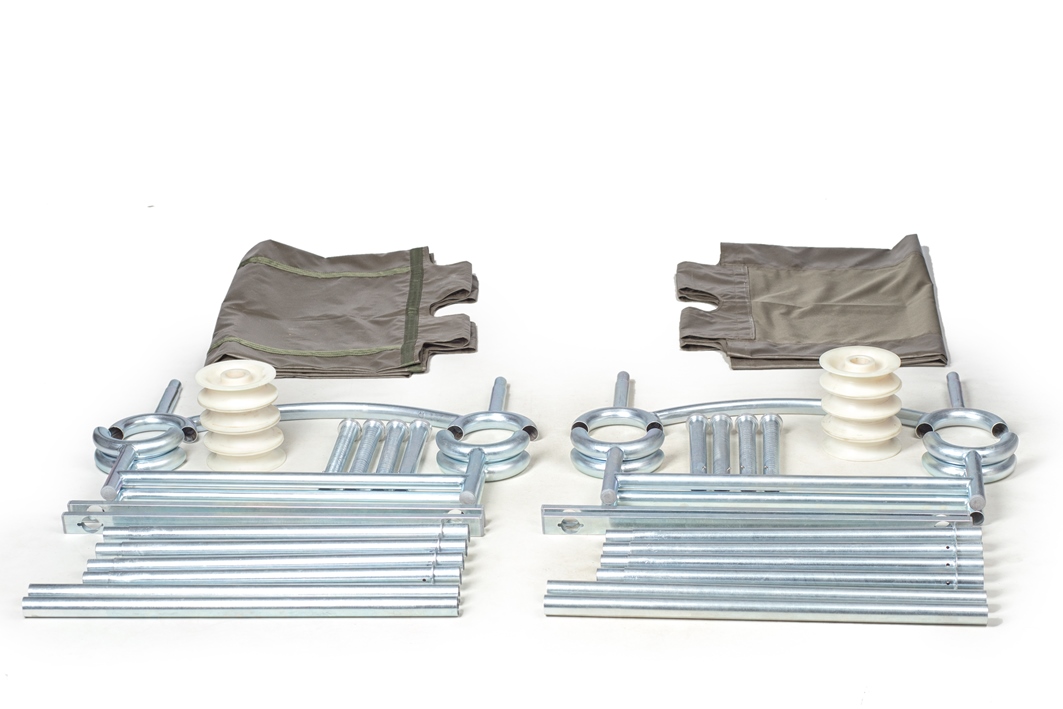

The mtb set includes
single beds2 pieces
handles stretcher8 pieces
transport bag2 pieces
belt fixing 2 pieces
Price
Model МТВ ARMY
Price for 1 piece., on request
minimum order 300 pieces








Buy the army beds
